In the ever-evolving landscape of smart glass technology, PNLC (Polymer Network Liquid Crystal) and PDLC (Polymer Dispersed Liquid Crystal) stand out as two prominent solutions. While both technologies serve the purpose of controlling light and privacy in innovative ways, they differ in several critical aspects.

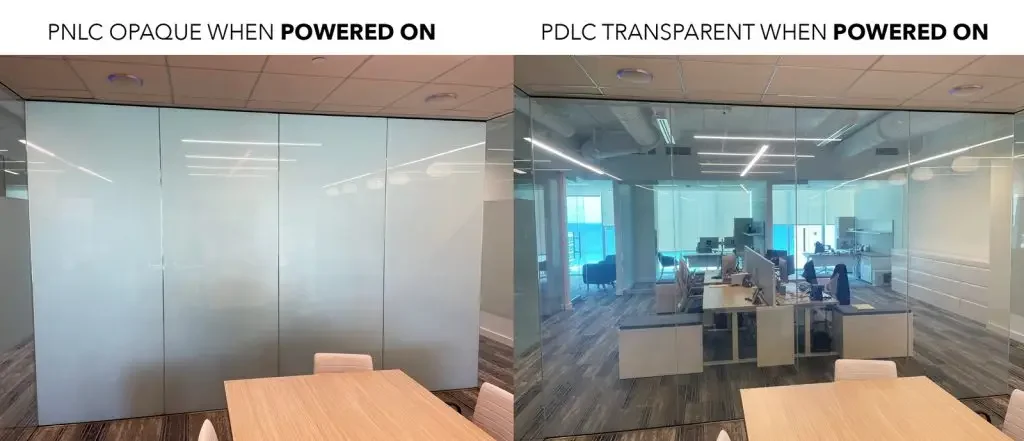

1. The most significant difference between PNLC and PDLC PriWatt smart glass lies in their operation:
PDLC Smart Glass becomes transparent when powered on and opaque when powered off. This means that when electricity is applied, the liquid crystals align so light can pass through, making the glass clear. When the power is turned off, the crystals scatter light, turning the glass opaque.
PNLC Smart Glass, in contrast, operates in reverse. It turns opaque when powered on and clear when powered off. This reverse operation allows for unique applications, where privacy is instantly provided with the flip of a switch, while still offering the ability to return to a transparent state without continuous power consumption.
This reverse functionality makes PNLC Smart Glass, also known as Adverse PDLC Glass, an innovative alternative for spaces that require dynamic control over privacy and visibility.
2. Another crucial difference between PNLC and PDLC is in their availability and application forms:
PDLC technology is versatile in that it comes in both glass form and as a film. The PDLC film can be applied to existing glass surfaces, making it a flexible solution for retrofitting projects or situations where replacing glass is not feasible.
PNLC, however, is available only as glass. This means that it must be installed as a complete glass unit, which might limit its use in retrofitting existing windows or surfaces. However, PNLC glass offers a premium finish with unique properties for new construction or high-end projects.
3. When it comes to optical performance, PNLC has a distinct advantage over traditional PDLC glass in terms of haze and transparency:
While PDLC glass provides effective control over light and privacy, it can sometimes suffer from a slight haze in its transparent state, which may affect the clarity of the view through the glass.
PNLC glass offers better performance in terms of haze and transparency. The polymer network within PNLC technology allows for more uniform alignment of liquid crystals, resulting in clearer, more transparent glass when the power is off. This makes PNLC the preferred choice for applications where visual clarity is paramount, such as in high-end residential or commercial settings.
4. Cost is always a factor when choosing between different technologies, and here too, PNLC and PDLC differ:
Generally, PDLC glass is more affordable, making it accessible for a wider range of projects. Its availability in both film and glass forms also adds to its versatility, catering to various budget levels.
PNLC glass is typically more expensive than regular PDLC glass. The advanced materials and manufacturing processes required for PNLC contribute to its higher price point. However, the superior performance, particularly in terms of transparency and haze, can justify the additional cost, especially in projects where these attributes are critical.
When choosing between PNLC and PDLC smart glass, it’s essential to consider the specific needs of your project. PNLC offers a unique reverse operation, superior clarity, and is available only in glass form, making it ideal for high-end applications where performance and aesthetics are crucial. However, it comes at a higher cost and lacks the flexibility of PDLC film. On the other hand, PDLC smart glass, with its more traditional operation and lower price point, remains a versatile and practical solution for a wide range of applications, particularly where budget constraints are a consideration.
By understanding these key differences, you can make an informed decision that best meets the demands of your project, whether it’s for residential, commercial, or specialized use.
