Smart Glass Connection for Pivot Door

3 important steps to know when you plan to install a smart glass door:

  1. Pivot wire connection
  2. Electrical basbar location (on the side or top and bottom)
  3. U-channel cover for basbar
  • Pivot

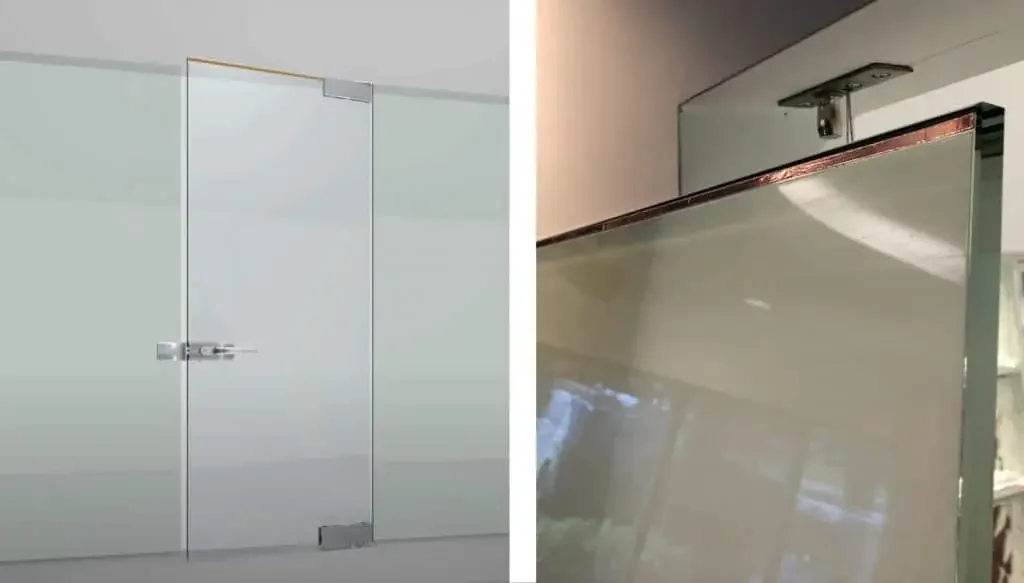

This wire connection solution is the best and most popular because is easy, safe for the wires, and esthetic from the design point because the wires are hidden inside of the pivot.

As there is no frame around the glass for a wire tube connection, we need to find out a smart solution for the wires. Because is only a top patch on the door, we get an interesting idea to let the wires go through the patch on top.

We don’t need to use other extra accessories, just OPEN AN HOLE on the top patch joint part, see the video below:

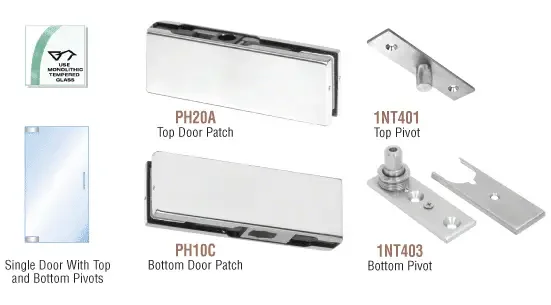

At this link, you can find the full CRL setup from the video: Click Here





  • Electrical Basbar

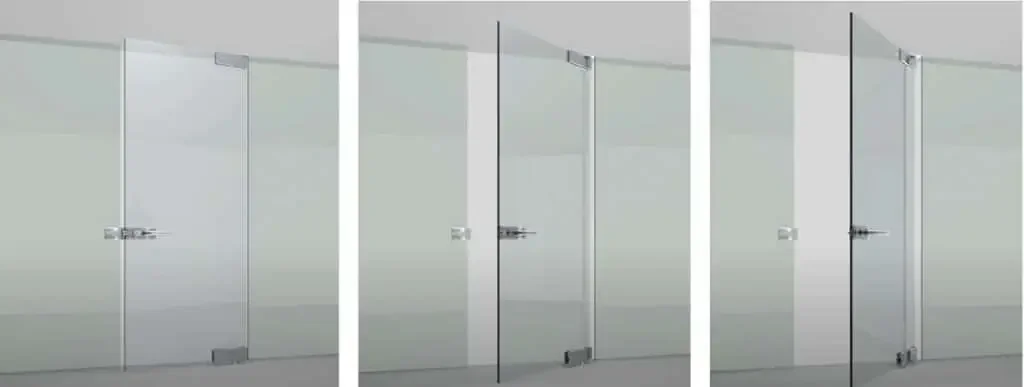

Busbars on the Top



Video example: Busbars on the Top and Bottom

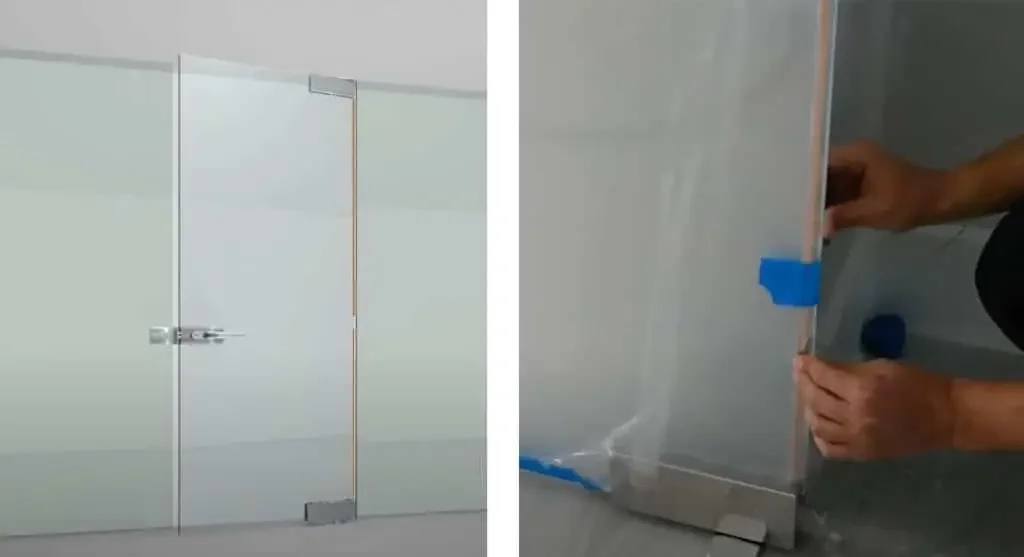

Busbars on the side





Video example: Busbars on the side (here we used black color u-channel, same as the frame).





  • U-channel cover

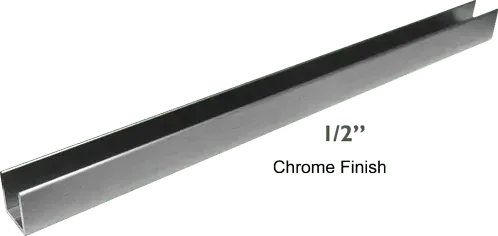

For the frameless doors, we need a solution to cover the busbar. The U-channel with the same color as the frame will be the best solution. Please see examples below:



Video examples:



Request a consultation with a Smart Glass Certified Installer in your city: Click Here
