PRIWATT GLASS

Electric Switchable Privacy Laminated Glass

Complete Privacy Control At Your Fingertips

Easy to Install and Connect

WHAT IS PRIWATT
SWITCHABLE SMART GLASS

Electrically switchable privacy glass for interior and exterior use

• Dynamic Privacy Control: A simple ON-OFF switch or a remote turns the Smart Glass from being frosted (opaque) to clear (transparent).

• Optimized Space: Replaces thick studded walls with thin partitions or section open floor plans with minimalist solutions. Creates hight-tech conference rooms, private offices, wall dividers, windows and doors, etc.

• Flexible Design: Custom shapes and sizes can be created and multiple pieces can be joined together to create large switchable glazed panels or parCCons.

• Simple Installation: Smart Glass can be easily installed as any regular laminated tempered glass. It can be installed by any certified glazier and connected to the power by any certified electrician.

• Easy Cleaning: Unlike draperies, blinds and shutters, glass collects only a fraction of dust, so cleaning is kept to a minimum. Turn it off and use a soR cloth and gentle soap. When done, ensure there is no water or soap leR on the glass or the edges.

PRIWATT GLASS PERFORMANCE

Light Transmission

View angle (ON) >170°

Electrical Parameters

Working Voltage (ON) 48-55 VAC
Power Consumption < 0.5W/SF
Saturated Voltage (ON) < 25V
Responding Time (OFF-ON) < 200ms
Responding Time (ON-OFF) < 10ms
Switch Speed ON < 200 milliseconds
Switch Speed OFF < 10 milliseconds

Environmental Parameters

Operation Temperature -22 F to 122 F
Storage Temperature -40 F to 158 F
Lifespan (ON) >15 Years

Visible Light (ON)

83%

Visible Light (OFF)

73%

Haze (ON)

Haze (OFF)

95%

IR Blocking (ON)

20%

IR Blocking (OFF)

85%

UV Blocking (ON/OFF)

99%

Solar Heat Gain Co-efficiency - SHGC (ON)

0.74%

Solar Heat Gain Co-efficiency - SHGC (OFF)

0.31%

Physical Parameters

Glass Type: Low Iron, Laminated, Heat Strengthened or Tempered
Glass Color: Can be combined with color interlayers or a wide range of tinted glass to meet any requirement
Max Size 70 inch x 165 inch
Thickness 3/8 inch
Thickness 1/2 inch
Thickness 9/16 inch
Weight ~5 lbs/sqft
Shape: Any shape or curved including holes, notches and cut outs.
Sound transmission class (STC) ~ 40

PRIWATT GLASS TESTING

Passed: ASTM E662 - STANDARD TEST METHOD FOR MEASUREMENT OF SMOKE OBSCURATION USING A CONICAL RADIANT SOURCE IN A SINGLE CLOSED CHAMBER, ON PRIWATT™ Interlayer
Passed: ASTM E1354, STANDARD TEST METHOD FOR HEAT AND VISIBLE SMOKE RELEASE RATES FOR MATERIALS AND PRODUCTS USING AN OXYGEN CONSUMPTION CALORIMETER IN ACCIDENCE WITH NFPA 130 SECTION A.8.4.1.10, ON PRIWATT™ Interlaye
Passed: BOMBARDIER SMP 800-C – TOXIC GAS GENERATION FROM MATERIAL COMBUSTION ON PRIWATT™ Interlayer
Passed: ANSI/CAN 16 CFR 1201 Boiling Test

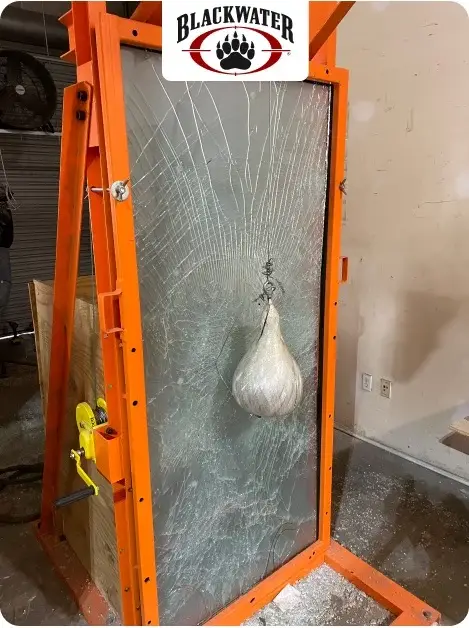

Passed: ANSI/CAN IMPACT Test

Certified by UNDERWRITERS LABORATORIES : UL E514182

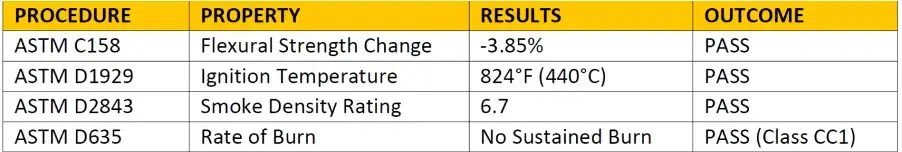

Modified EVA interlayer successfully passed all tests for Accelerated Weathering, Flexural Properties, Ignition Temperature, Smoke Density, and Rate of Burn in accordance with Miami Dade

US Patent # US11686966B2

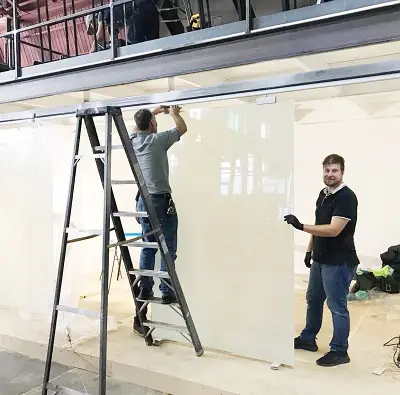

SMART GLASS INSTALLATION

Smart Glass it’s easy to install like regular laminated tempered glass. Can be installed by a local certified glazier and connected to the power by a certified electrician.

Few import moments:

Smart Glass Technologies is offering step by step instructions and full phone and video support for the installation and connection.
Basbar locations and wire connections need to be planned and discussed prior to manufacturing the Smart Glass.

HOW THE TECHNOLOGY WORKS

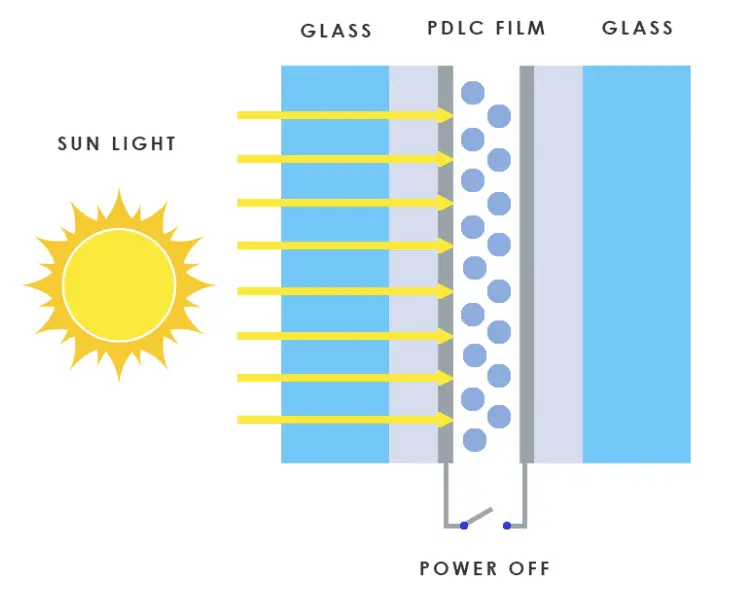

When the power is switched OFF the liquid crystal molecules are randomly oriented scattering light and the Privacy Smart Film stays opaque.

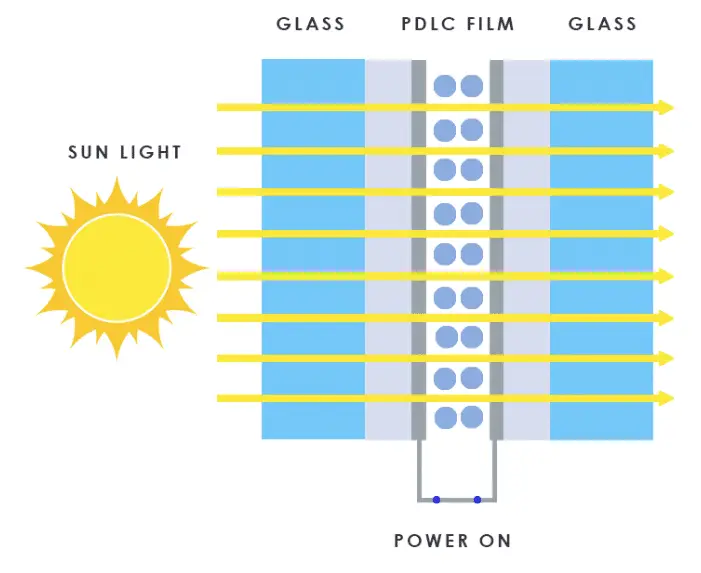

When the power is switched ON the liquid crystal molecules align and incident light passes through and the Privacy Smart Film panel instantly becomes transparent.

Multitude of
Control Options

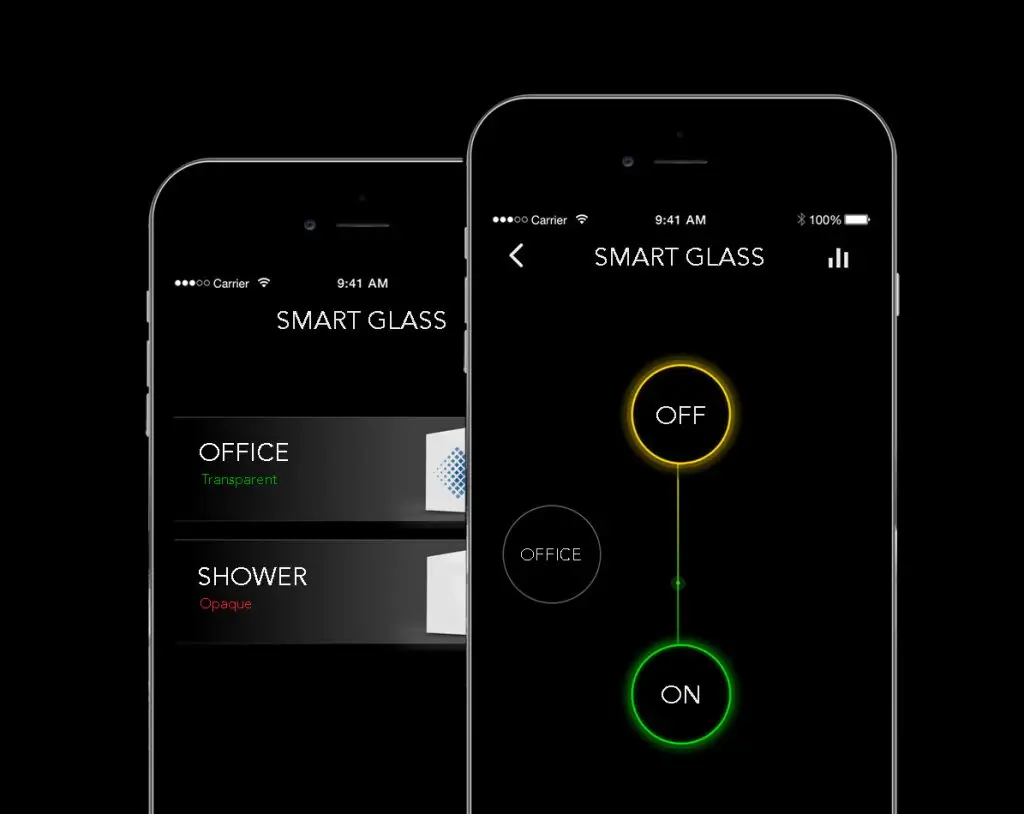

PriWatt™ Glass can be controlled with a variety of devices and can be easily configured to work with your smart home through the app.

SIMPLE SWITCH
SMART PHONE
REMOTE
LUTRON
ALEXA & GOOGLE HOME

SMART GLASS BENEFITS

Instant Privacy

PriWatt™ Glass is undeniably the future of privacy glass and privacy window treatments. Whether it be for commercial, residential or specialty applications, the single biggest benefit PriWatt™ Glass offers is complete privacy at your fingertips.

EASY MAINTENANCE

Maintaining PriWatt™ Glass is as easy as it gets. Unlike draperies, blinds and shutters PriWatt™ Glass collects only a fraction of dust so cleaning is kept to a minimum. If you wish to clean your smart glass simply turn it off and use a soft cloth and gentle soap. When done, ensure there is not water or soap left on the glass or the edges. It’s really as simple as that.

DECREASE ENERGY CONSUMPTION

PriWatt™ Glass is proven to minimize the effects of high/low external temperatures from affecting your interior temperature, essentially saving you on energy costs. Operating at 48V AC, PriWatt™ Glass consumes less than 0.5 Watt per SqFt when on (transparent) and 0 Watts when off (opaque), making it great for your pocket as well as our planet.

BLOCK DAMAGING RADIATION

Direct exposure to UV and Infrared radiation is not only bad for your floors and furniture but also to your health. PriWatt™ Glass blocks 98% of harmful UV rays and 95% infrared radiation… Protecting you, your loved ones and your valuables.

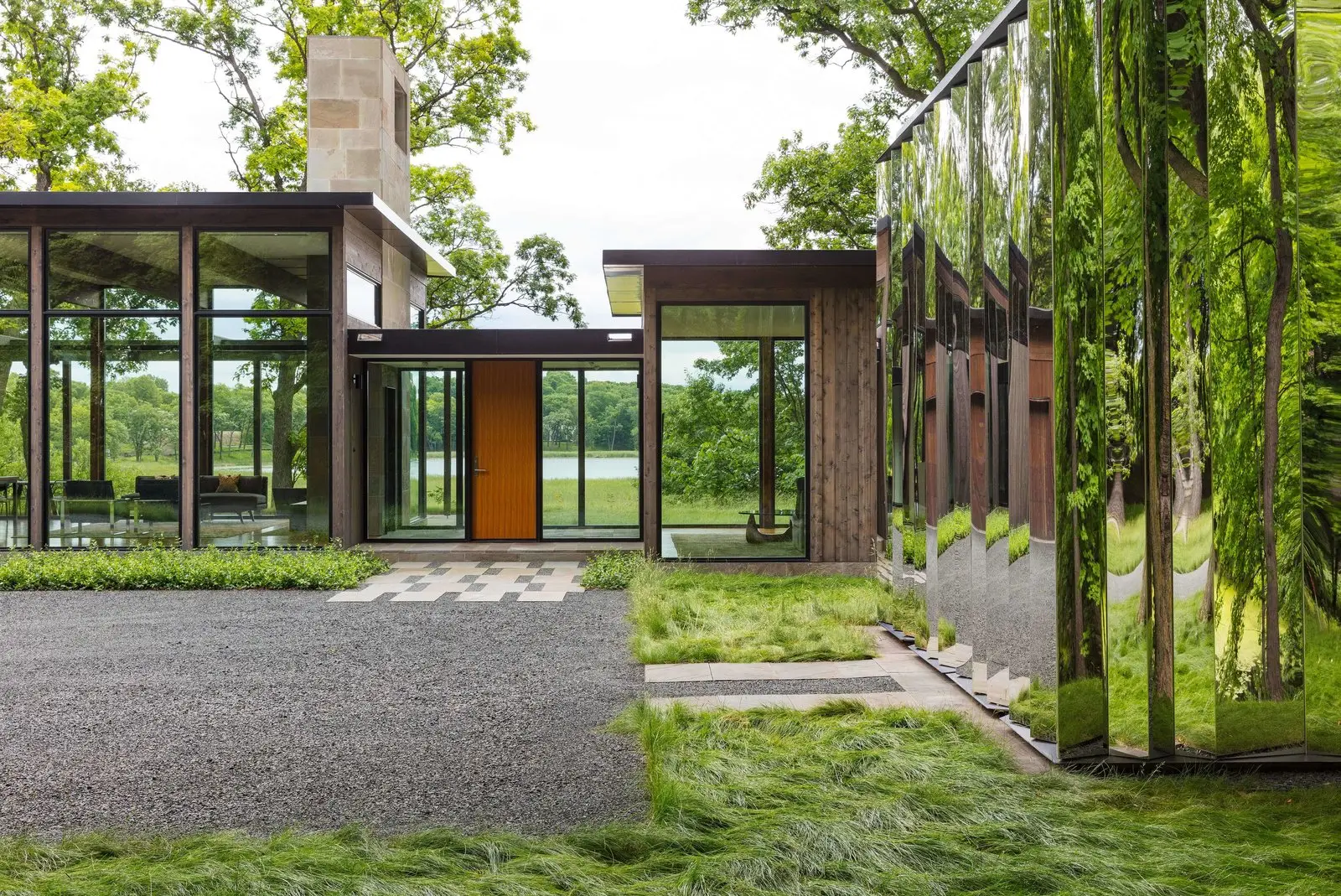

FOR RESIDENTIAL HOMES

Natural light is in the top 3 most desired features of homes
Increased physical and emotional wellness for happier residents.
Differentiates your building with the latest technology.

FOR COMMERCIAL BUILDINGS

Promotes employee productivity.
Controls heat and glare.
Reclaims unusable office space near windows.
